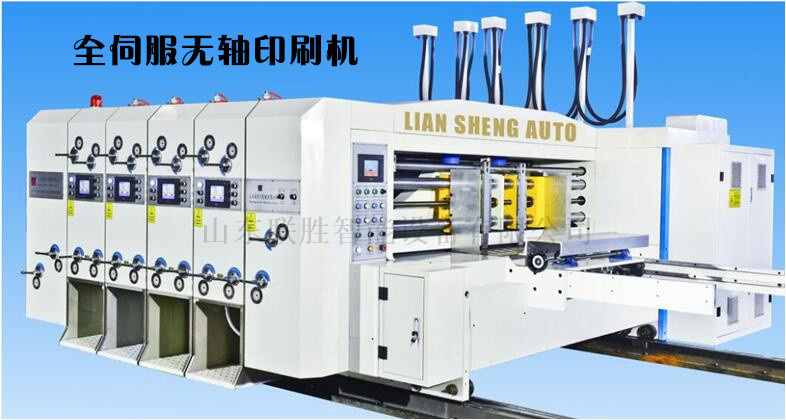

| 全伺服無軸印刷機 | ||||
| Full Servo Shaftless Flexo Printer Slotter and Die-cutter | ||||
| ■ 兩種方式可選：機組移動式、機組固定式。 | Optional between Mobile or Fixed. | |||
| 各單元獨立伺服電機驅動，真空傳送印刷，彎曲紙板準確傳送；印刷套印更準；可配置熱風、紅外線/紫外線（UV），實現高網點滿版涂布紙印刷；可存儲訂單；遠程維護，在線診斷故障排除； | Each unit driven by independent servo motor,vacuum transfer, even bend cardboard can be transferred accurately; Hot air, infrared or UV available; Capable of HD coated paper printing; Different products orders Memory: Remote maintenance and online trouble shooting available. | |||
| 送紙部：伺服電機獨立驅動 | Feeding Unit: Driven by independent Servo motor. | |||
| 1、連續/隔張送紙功能 | 1.Continuous/Skip feeding | |||
| 2、免壓送紙，送紙長度可調 | 2.Non-pressure feeding, Input length adjustable | |||
| 3、除靜電，配置多排毛刷吸塵風機，可靠除塵。 | 3. Effective removal of static electricit, multiple rows of brush, effective cleaning of the dust. | |||
|
印刷部：伺服電機獨立驅動 1、真空下吸式印刷 2、印版長度補償：由于印版所使用的印刷壓力不同而造成印版的長度誤差的情況，可自動補償，范圍3mm。 3、印版傾斜修正功能，貼板時的誤差可快速修正，修正范圍5mm。 4、印刷套準精度：±0.3mm 5、刮刀供墨系統，雙刮刀、單刮刀可選 6、印版清洗后自動復位系統 |
Printing Unit:Driven by independent Servo motor. 1,Vacuum transfer printing; 2, Longitudinal Printing Compensation: rectify the errors from different printing pressure. With an range of 3mm. 3, Printing plate deviation correction system, range of 5mm. 4.Printing registration accuracy ±0.3mm. 5. Doctor blade( Chamber or single); 6. Auto reset for printing plate after ink washing. | |||
|
模切部：伺服電機獨立驅動 1、膠墊輥伺服電機獨立驅動 2、膠墊輥軸向移動50mm 3、膠輥修復系統 |
Die-cut Unit:Driven by independent Servo motor. 1.Anvil Roller driven by servo motor; 2.Axial moving distance 50mm. 3. Anvil cover repairing unit. | |||
| 主要技術參數 | Parameters | ||||
| 規格型號 | Model | YKM930 | |||
| 最大印刷面積 | Max Printing Size(mm) | 930*2000 | |||
| 最高速度 | Max. Speed(Pcs/Min.) | 300 | |||
| 最大進紙尺寸 | Max. Feeding Size(mm) | 930*2100 | |||
| 最小進紙尺寸 | Min. Feeding Size(mm) | 280*485 | |||
| 最大隔張進紙尺寸 | Max Skip Feeding Size(mm) | 1120*2100 | |||
| 適應紙板厚度 | Suitable Thickness(mm) | 2-9mm(Adjustable) | |||
| 印刷版厚度 | Printing Plate Thickness | 7.2mm | |||
| 刀片寬度 | Blade Width | 7mm | |||
